Layouts Window

Layouts allow custom regions within the Canvas to be defined. These regions can be used to easily restrict the geometry of a Layer to within a defined Region

Creating Layouts

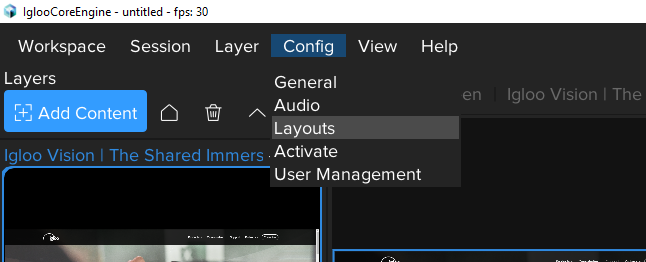

The Layouts window can be opened from the toolbar menu Config > Layouts

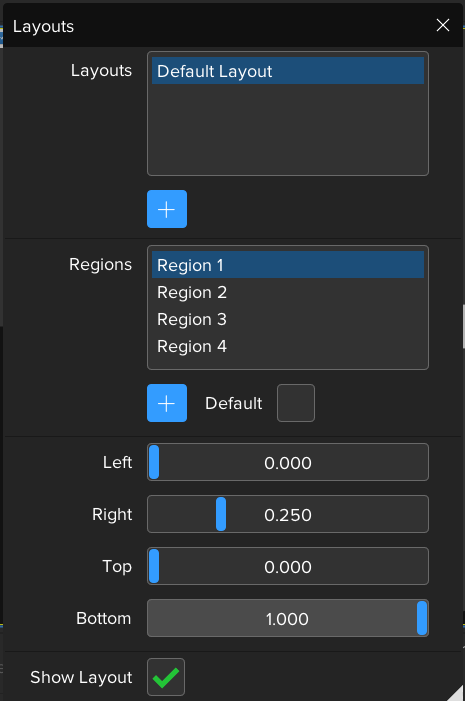

Use the + button below the Layout list panel to create a new layout, then right-click the new Layout within the Layout list and choose Rename to change its name.

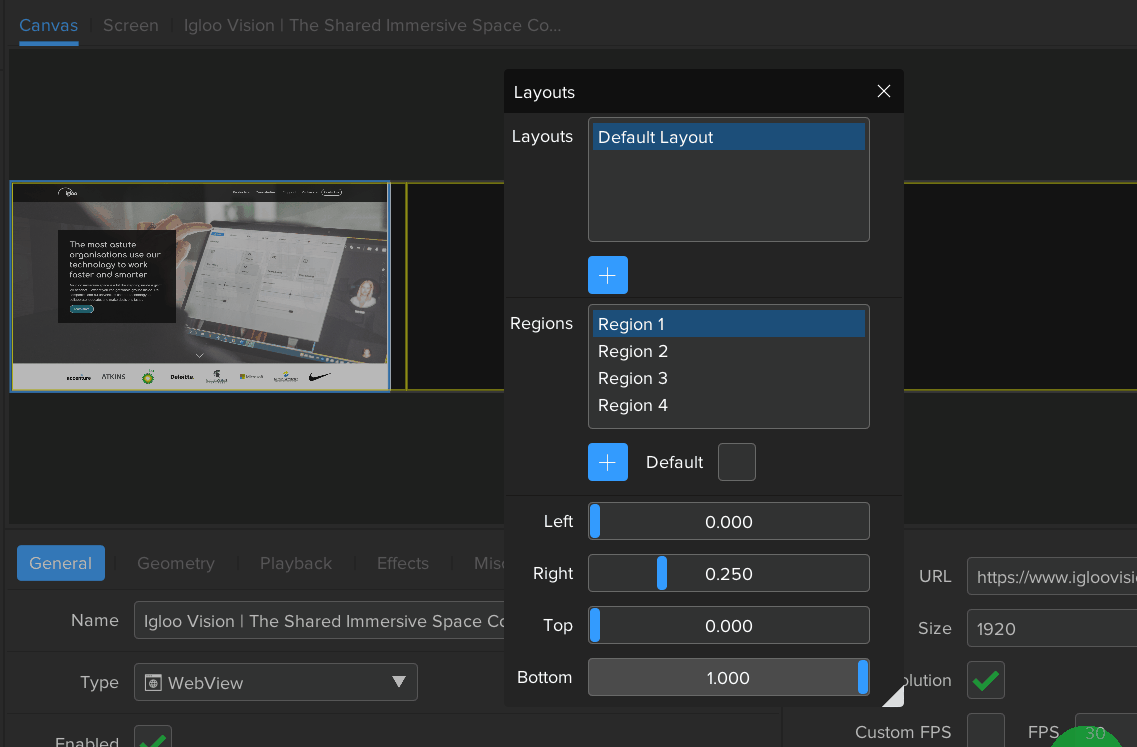

When a new Layout is added, it will contain 4 regions by default. A Layout can contain any number of Regions.

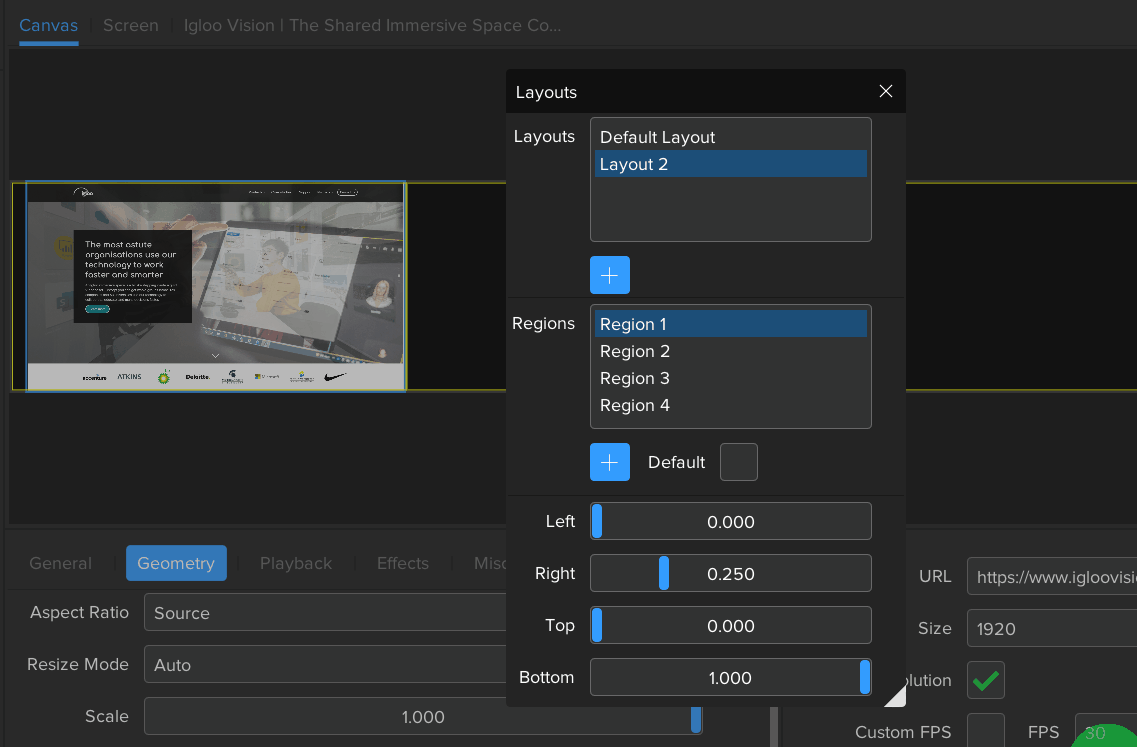

• Use the + button below the Region list panel to create a region within the selected Layout.

• Right-click a Region within the Region list and choose Rename to change its name.

• Use the Left , Right, Top and Bottom sliders to adjust the Region properties. CTRL+Click to manually enter a slider value.

CTRL + Click within any slider to manually type a value

Using Layouts

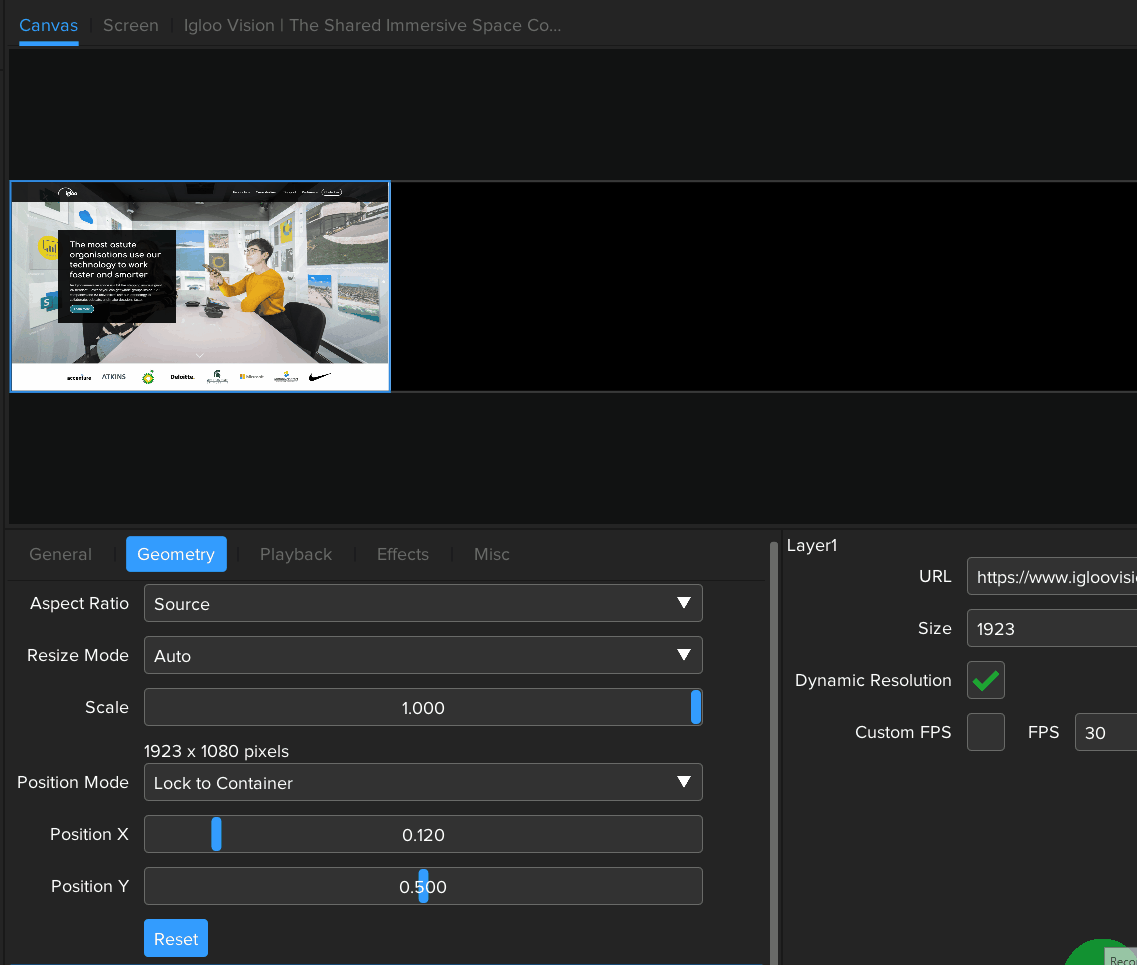

Within the Geometry settings of a Layer, set Position Mode to Lock to Region. A Region within a Layout can then be selected. Once a Region has been set, the Layer will be locked within the boundary of the Region.

Show Layout

The Show Layout toggle can be used to keep the selected layout visible once the Layouts window has been closed.
