Igloo Setup
Introduction
Igloo Setup is used to generate configuration files for an Igloo installation, also known as a projection scene.
A projection scene specifies the geometry and properties of a set of screens in a given space.
The application starts up with the initial view shown below.

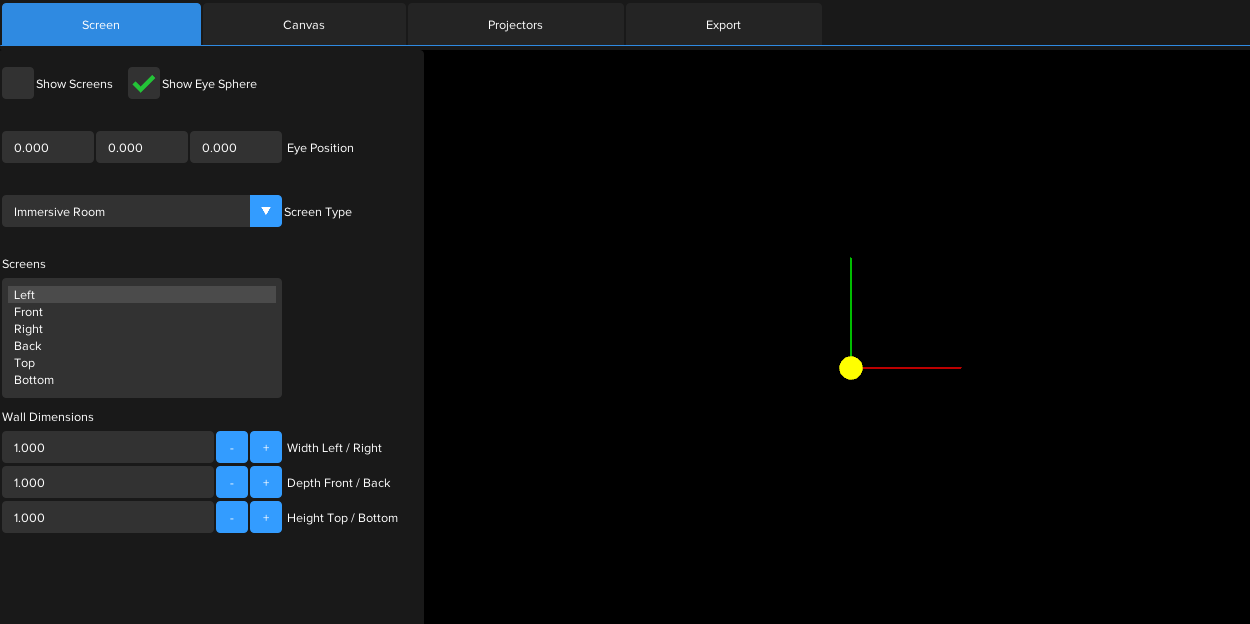

Initial view of Igloo Setup.
The user interface consists of tabs - Screen, Canvas, Projectors, Windows, Warping, Blending, Black Level (Optional) and Export, which are intended to be used sequentially. These represent the stages in the Igloo Setup pipeline. The workflow begins by defining the geometry of the Screen. The Canvas tab uses the screen dimensions to determine the pixel resolution of the space. Likewise, the Projectors tab uses the canvas to specify the projector regions and other attributes. The Windows tab determines the number and location of the output windows. The Warping and Blending tabs are used to alter the geometry and blending between projectors to create a seamless image. Finally, the configuration files are generated in the Export tab.
