Kuula

See also: full documentation

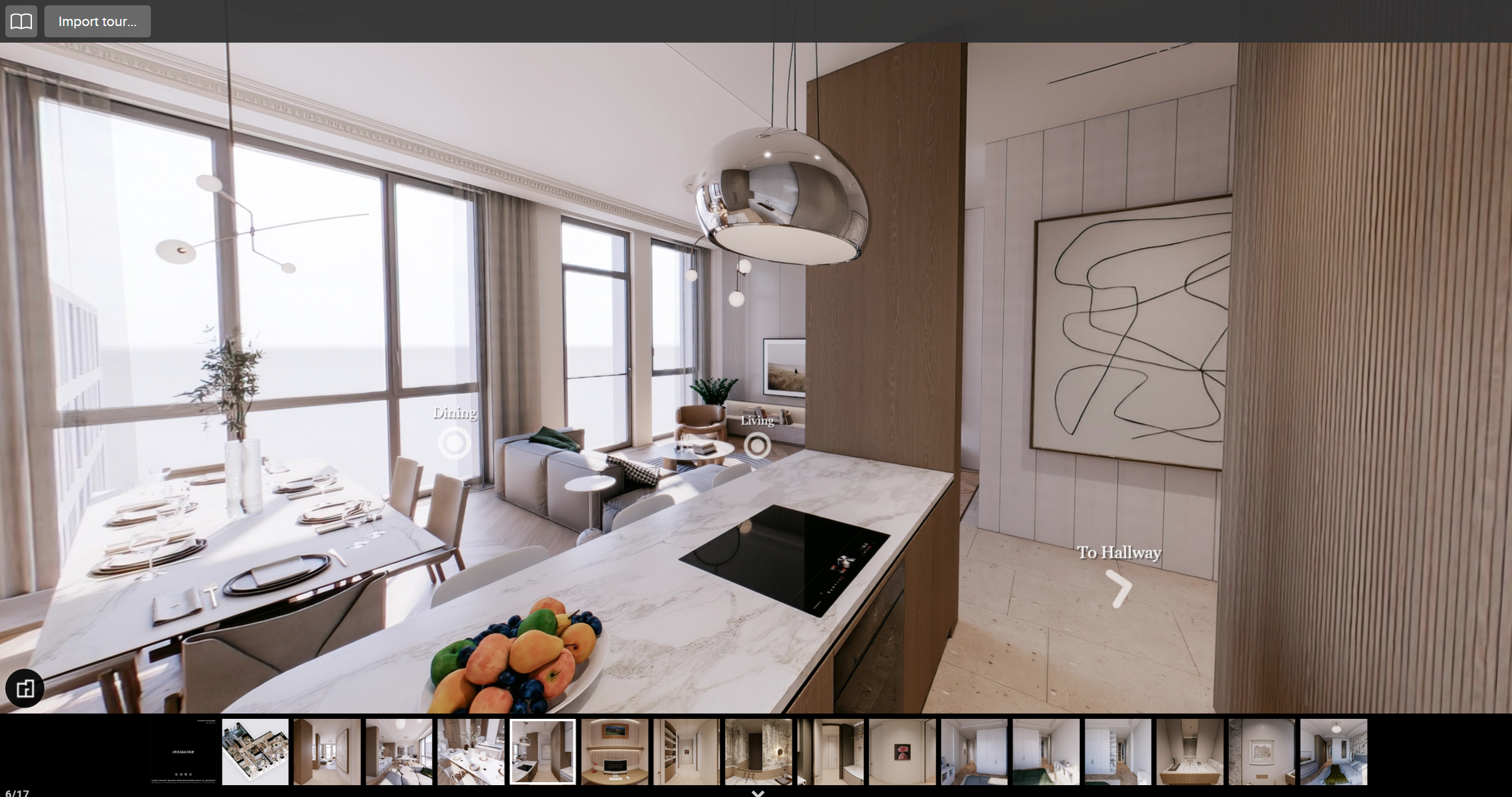

View tours and panoramas from Kuula in Igloo Core Engine.

Usage

Any changes to location within a tour are updated on all connected viewers.

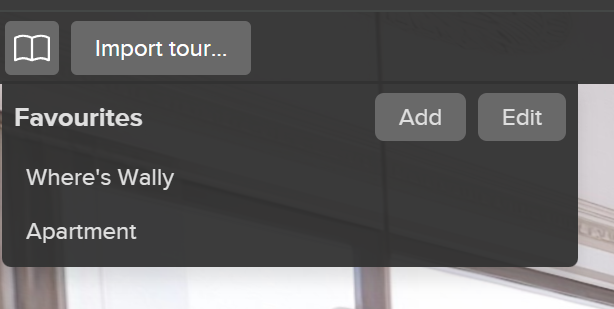

Add, load, and edit favourites using controls; loading a favourite tour will update all connected viewers.

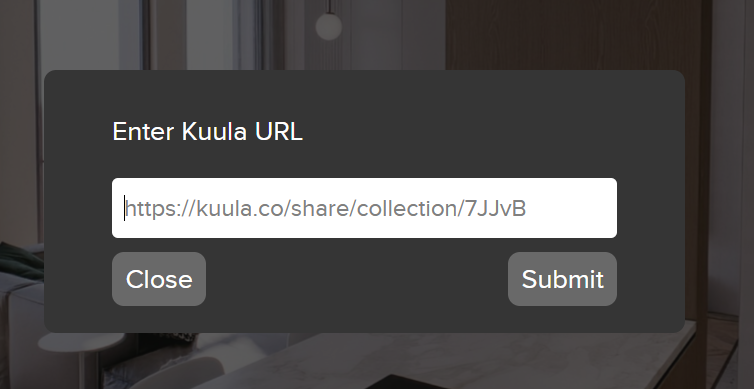

Load a new tour with “Import tour…”

If the URL points to a valid Kuula tour or post, it’ll be loaded and all connected viewers will be updated.

Configuration

Endpoints

• Control page - http://localhost:800/kuula/control (or configured Control Panel browser).

• viewFrame - http://localhost:800/kuula/viewFrame (single frame view, or composited into equirectangular) (or use pre-made Igloo Core Engine session).

Control Panel application is configurable with key "kuula" - see instructions here.

Igloo Core Engine session is included in the example set. It’s a composition using 6 viewFrame WebViews.

URL parameters

The control page takes no parameters

viewFrame

• heading - camera heading.

• pitch - camera pitch.

• tourId - URI encoded tour URL to load on startup.

e.g. http://localhost:800/viewFrame/?heading=90+pitch=-90.
